Filament Winding Machine

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

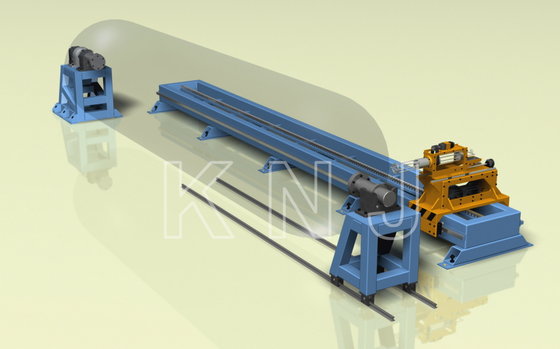

Filament Winding Machine

Click to enlarge image

 Origin

Korea

 Model Number

SATURN-3000L-A4-S1

 Brand Name

CGA


Machine Part

Axis 1(Spindle-Mandrel Rotation)

Axis 2(Horizontal Carriage)

Maximum Diameter

2000mm [78.7"]

Carriage Stroke

2~15m [50~590.5"]

Maximum Speed

60rpm

Maximum Speed

0.5m/sec [100ft/min]

Spindle Capacity

3500kg





Number of Spindles

1~2





Axis 3(Cross-feed) *Optional

Axis 4(Eye Rotation) *Optional

Carriage Stroke

900mm [35.4"]

Stroke

±180 degrees

Maximum Speed

0.5m/sec [100ft/min]

Maximum Speed

100rpm





Inside Diameter

254mm [10"]

Control Part

- Computer Control System, Standard PC Based : Windows XP

- 2~4 Axis CNC Motion Controller

- Standard G-Code international CNC machine language

- AC Servo Motor


Related Keywords: Filament Winding , GRP , FRP , Fiber

  Minimum order

1 set
